Description:

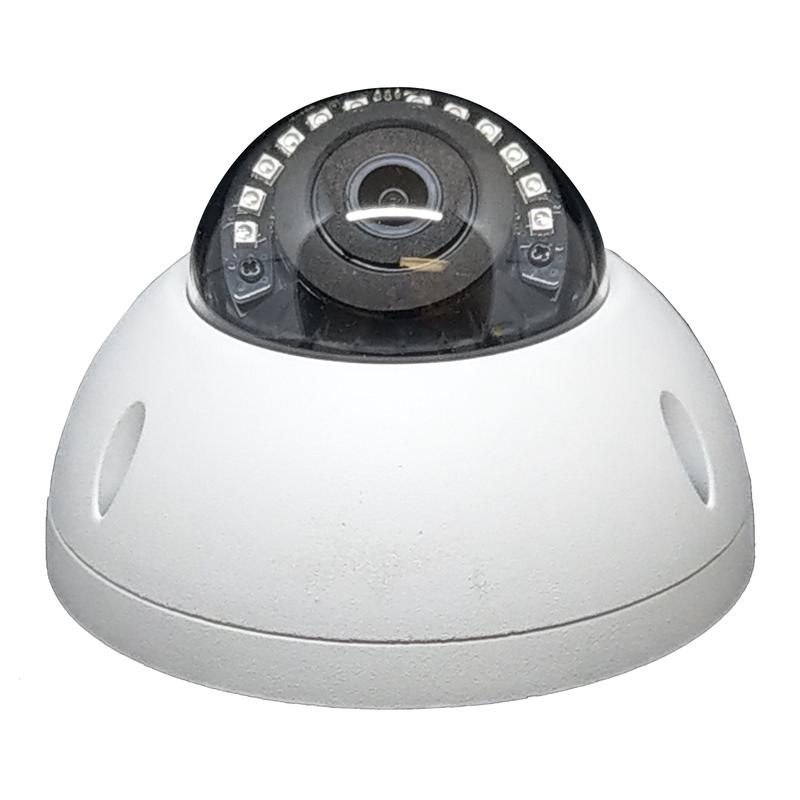

This 4 IN 1 professional IR dome security cameraemploys1/2.5 CMOS Image Sensor with 5 Megapixel Resolutionand advanced circuit design. It adopts advanced image processing technology. The resolution is as high as5 Megapixel, which ensures clear and bright pictures.It has OSD Menu that can change the 4 different video output HD-TVI, HD-AHD, HD-CVI, and CVBSand adjust the video setting. It also has WDR function.Built-in 2.8mm fixed lens, effectively extends your observation range. With 18 pcs IR infrared LEDs, it has20 metersIR range, can change from color to black automatically and take clear picture during both day time and night time. TheSmart IRfunction also enables it to catch clear face picture during night time. The camera hasIP66fully weatherproof rate and vandal proof metal housing. Its easy to install. It can protect your office or home effectively.

Feature Points:

• 4 IN 1 (HD-TVI, HD-AHD, HD-CVI, CVBS) HD technology produces 5 Megapixel Full-HD Video with Sharp and Detailed Images
• 1/2.5 CMOS Image Sensor with 5 Megapixel Resolution
• 2.8mm Fixed Lens and Captures Images over Large Areas
• 20 meters IR range; 18pcs IR infrared LEDs; Day/Night
• IP66 weatherproof; Vandalproof
• OSD Menucan change the 4 different video output (TVI, AHD, CVI, and CVBS) and adjust the video setting
• DWDR (Digital Wide Dynamic Range) Function
• Smart IR technology: Reduces Over-exposure of the IR LEDs at the Center of the Image
• IR-Cut Filter: True day/night (ICR) Captures sharp, Clear Images in Low Light and at Night
• Multi-Axis for Wall or Ceiling Mounting
• Power Supply: DC 12V, 500mA (IR On), 120mA (IR Off)
• Dimension: 94.5 76 mm
• Applicable in Finance, Supermarkets, telecommunications, hotels, offices, corridors, stairs, garage and other indoor/outdoor monitoring sites.

Our 4in1 camera default setting isHD-TVI ([email protected]). If your system is not HD-TVI, please switch the camera to the same mode as your system does by using the joystick or OSD menu. You can find the instruction for how to switch to 4 different mode in the user manual. or you are always welcome to contact us if you have any questions or need help. Thank you.

User Friendly Joystick configuration button for video format switching and OSD (On Screen Display) menu access

• Push down on the joystick button to access the OSD menu to setup/fine tune the video performance and powerful function of the camera.
• Switch the output signal format by the joystick button (within 10 sec of power on)
  • SD CVBS: Push the joystick button towards the left for 5 seconds then release
  • HD-TVI: Push the joystick button towards the right for 5 seconds then release
  • HD-AHD: Push the joystick button up for 5 seconds then release
  • HD-CVI: Push the joystick button down for 5 seconds then release

***If you are interested in the mounting bracket information for this camera, please check our Junction Box JC665W page.

What\’s in the box?

• 5MP 4in1 True-HD IR Variable Lens Dome security camera; Screws.
• (Optional) Mounting Junction Box JC665W
